Finished demo

We provide a finished version of the custom integration that you can get running in your preferred environment.

Start web apps

This demo involves two web apps: Uniform configuration app and a demo app. You can run these apps in the environment of your choice.

StackBlitz

1. Add the following permissions to your Uniform API key:

   Uniform Canvas > Compositions > Create
   Uniform Canvas > Compositions > Publish
   Uniform Canvas > Compositions > Update

   caution

   You should always assign the minimal permissions required to meet your requirements. Since this you are going to load configuration from a code repository into Uniform, you need permissions to write to Uniform.

   For more details on permissions, see the administrator guide.

2. Open StackBlitz to create your development environment.

3. After you open StackBlitz you will see an error in the terminal that environment variables are not set. You must set the variables in apps/demo-monsterpedia/.env to match the settings that apply to your Uniform project.

4. Changing the .env file should cause the container to restart. If it doesn't, enter the following command in the StackBlitz terminal:

   npm run dev:basic

5. Open a new StackBlitz terminal.

   info

   You must open a new terminal because the default terminal is running the web apps.

6. Enter the following command:

   npm run canvas:basic:push

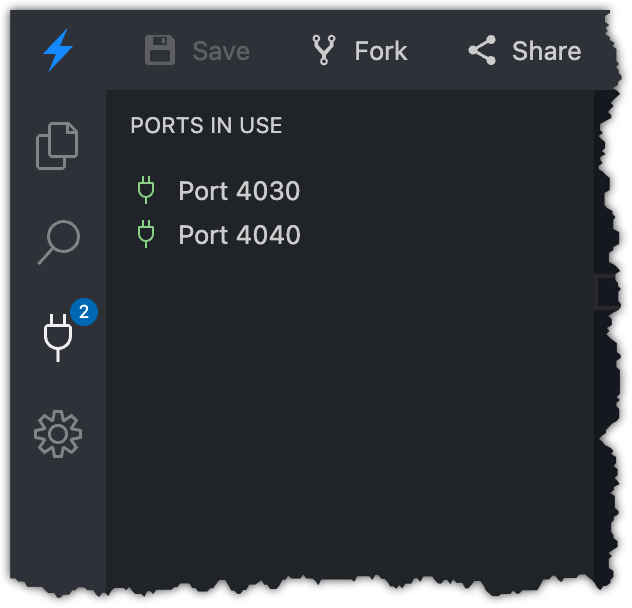

7. In the activity bar the plug icon indicates that 2 ports are in use. Click this icon.



8. You will see links to the web apps running on the 2 ports. Click the link for Port 4030.



9. A new browser tab opens. Copy the host name. It will be something like the following. You will need this value in a later step.

   https://uniformdev-uniform-mesh-tutorials-######--4030.local.webcontainer.io/

   info

   An error will be displayed in the browser tab. This is expected behavior because the configuration app can only run inside the Uniform dashboard.

10. Close the browser tab.

11. Click the link for Port 4040.

12. A new browser tab opens. Copy the host name. It will be something like the following. You will need this value in a later step.

    https://uniformdev-uniform-mesh-tutorials-######--4040.local.webcontainer.io/

    info

    An error will be displayed in the browser tab. This is expected behavior because the composition that is being retrieved is currently in draft mode.

13. Close the browser tab.

Local machine

1. Add the following permissions to your Uniform API key:

   Uniform Canvas > Compositions > Create
   Uniform Canvas > Compositions > Publish
   Uniform Canvas > Compositions > Update

   caution

   You should always assign the minimal permissions required to meet your requirements. Since this you are going to load configuration from a code repository into Uniform, you need permissions to write to Uniform.

   For more details on permissions, see the administrator guide.

2. Enter the following commands:

   git clone https://github.com/uniformdev/examples
   cd examples
   cd examples/docs/custom-integrations/basic/nextjs/finished

3. Set the variables in apps/demo-monsterpedia/.env to match the settings that apply to your Uniform project.

4. Open a command-line interface (CLI) in the root folder for the repository.

5. Enter the following command:

   npm install

6. Enter the following command:

   npm run canvas:basic:push

7. Enter the following command:

   npm run dev:basic

Register custom integration

1. Follow the steps to register your custom integration.
2. Assign the custom integration to your project.

Confirm use cases work

1. In Uniform, navigate to Settings > Monsterpedia.

2. Click Test.



3. Navigate to Canvas > Compositions.

4. Click Home Page.

5. Navigate to Landing Page > Dragon Details.



   info

   You will see that Ancient Gold Dragon is selected for the parameter Dragon. The dropdown list for this parameter is populated by a call to the API for the external system.

6. Publish the composition.

7. Open the demo app.



   info

   You will see details about the selected dragon.
